• Wheels, 17" (43.2 cm) steel (Includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.)
• Tires, LT245/75R17E all-season, blackwall
• Pickup box, Fleetside
• Recovery hooks, front, Black
• Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered)
• Spare tire lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (VF7) rear bumper delete is ordered.)
• Bumper, front chrome includes chrome bumper end caps
• Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete.)
• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Mirrors, outside manual, Black, manual-folding
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• Door handles, Black

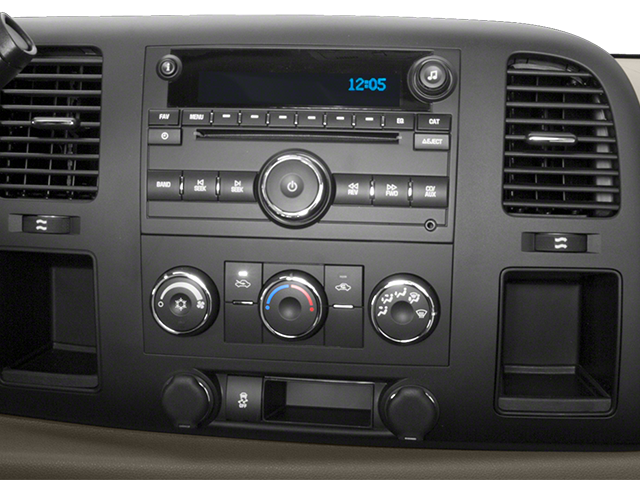

• Audio system, AM/FM stereo with seek-and-scan and digital clock (Not available with (U2K) SiriusXM Satellite Radio.)
• SiriusXM Satellite Radio, delete
• Audio system feature, 4-speaker system (Requires Regular Cab models)

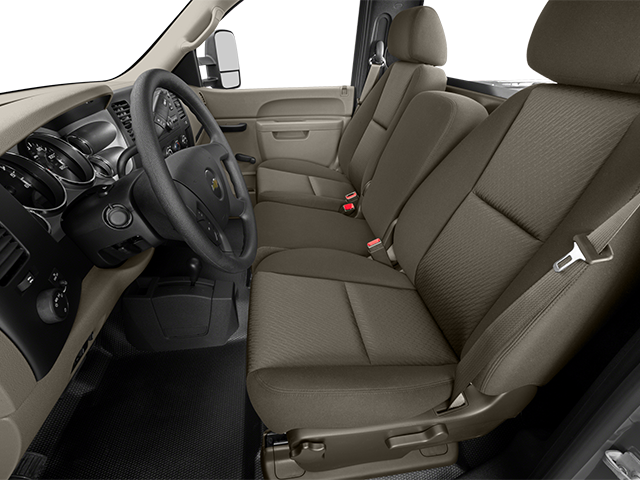

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• Seat trim, Vinyl
• Floor covering, Black rubberized vinyl

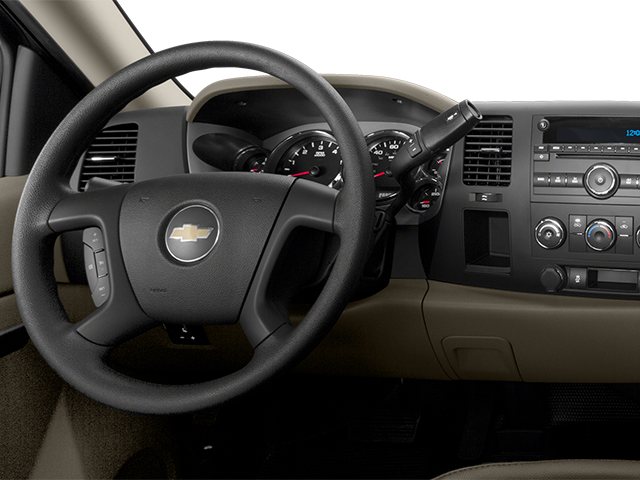

• Steering wheel includes theft-deterrent locking feature
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Cruise control, electronic with set and resume speed, located on steering wheel
• Air conditioning, single-zone manual front climate control

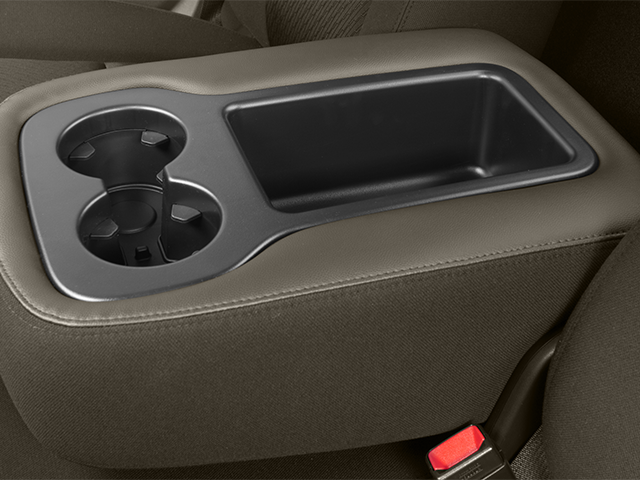

• Cup holders, front (Also includes rear cupholders on Crew Cab models. Rear cupholders are not included with (AE7) front 40/20/40 split-bench seat.)
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger, sliding with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Crew Cab models)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, delete
• Tire Pressure Monitor System (does not apply to spare tire)

MIRRORS, CAMPER, POWER-ADJUSTABLE GLASS, MANUAL EXTENDABLE, HEATED

• Alternative mirrors replacing mirrors that are standard with SEO (5B5) power windows
• locks and mirrors on a base decor truck. Provides RPO (DPN) outside heated power-adjustable manual folding
• manual extendable vertical camper mirrors consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface within a common head. Includes turn signals in mirror glass

PICKUP BOX, FLEETSIDE

• (STD)

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

• with outboard head restraints and center fold-down armrest with storage (STD)

DOOR LOCKS, POWER

• includes Remote Keyless Entry

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp. 30-amp nominal rating

WINDOWS, LOCKS AND MIRRORS, POWER WITH UPLEVEL DOOR PANELS ON A BASE TRIM LEVEL VEHICLE

• Provides power driver and passenger front side windows with uplevel door panels on a base trim level vehicle. Includes RPO (DL8) outside heated power-adjustable manual folding mirrors
• RPO (AU3) power door locks and RPO (UQ3) speaker system. C/K***43 models include rear door power windows and locks.

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SUSPENSION PACKAGE, HANDLING/TRAILERING, HEAVY-DUTY

• includes 35mm twin tube shock absorbers and 36mm front stabilizer bar (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

SNOW PLOW PREP PACKAGE

• includes 10-amp power for backup and roof emergency light
• forward lamp wiring harness
• (TRW) Provision for cab roof mounted lamp/beacon
• instrument panel jumper wiring harness for electric trailer brake controller
• (NZZ) Skid Plate Package and increased Front Gross Axle Weight Rating

DARK TITANIUM, VINYL SEAT TRIM

• (STD)

WHEELS, 17" (43.2 CM) STEEL

• (Includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. (STD)

REMOTE KEYLESS ENTRY

• with 2 transmitters and panic button.

SKID PLATE PACKAGE, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

TIRE, SPARE LT245/75R17E ALL-SEASON, BLACKWALL

• (Included with (QHQ) LT245/75R17 all-season
• blackwall tires. Available to order when (ZW9) pick-up box delete is ordered.)

AUDIO SYSTEM, AM/FM STEREO

• with seek-and-scan and digital clock (STD)

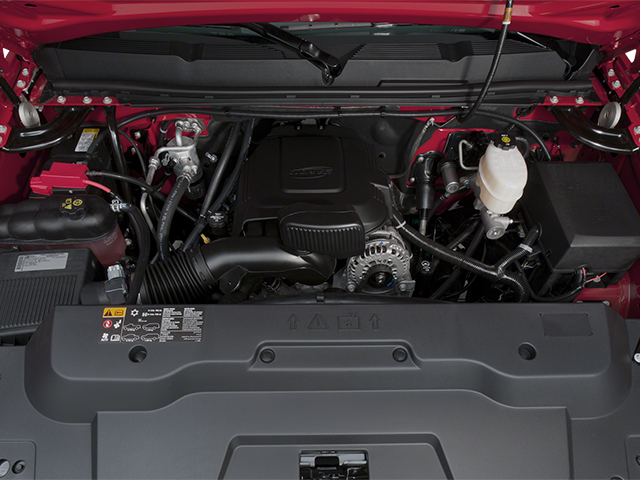

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)

• DEFOGGER REAR-WINDOW ELECTRIC
• WINDOWS LOCKS AND MIRRORS POWER WITH UPLEVEL DOOR PANELS ON A BASE TRIM LEVEL VEHICLE Provides power driver and passenger front side windows with uplevel door panels on a base trim level vehicle. Includes RPO (DL8) outside heated power-adjustable manual folding mirrors RPO (AU3) power door locks and RPO (UQ3) speaker system. C/K***43 models include rear door power windows and locks.
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 4.10 RATIO
• AUDIO SYSTEM FEATURE SPEAKER SYSTEM
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• MIRRORS CAMPER POWER-ADJUSTABLE GLASS MANUAL EXTENDABLE HEATED Alternative mirrors replacing mirrors that are standard with SEO (5B5) power windows locks and mirrors on a base decor truck. Provides RPO (DPN) outside heated power-adjustable manual folding manual extendable vertical camper mirrors consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface within a common head. Includes turn signals in mirror glass
• SUSPENSION PACKAGE HANDLING/TRAILERING HEAVY-DUTY includes 35mm twin tube shock absorbers and 36mm front stabilizer bar (STD)
• GVWR 9500 LBS. (4309 KG)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING with outboard head restraints and center fold-down armrest with storage (STD)
• SNOW PLOW PREP PACKAGE includes 10-amp power for backup and roof emergency light forward lamp wiring harness (TRW) Provision for cab roof mounted lamp/beacon instrument panel jumper wiring harness for electric trailer brake controller (NZZ) Skid Plate Package and increased Front Gross Axle Weight Rating
• PAINT SOLID
• SILVER ICE METALLIC
• DARK TITANIUM VINYL SEAT TRIM (STD)
• DOOR LOCKS POWER includes Remote Keyless Entry
• WHEELS 17 (43.2 CM) STEEL (Includes 17 x 7.5 (43.2 cm x 19.1 cm) steel spare wheel. (STD)
• TRAILERING EQUIPMENT HEAVY-DUTY includes trailering hitch platform and 2.5- inch receiver with 2 adapter 7-wire harness (harness includes wires for: park lamps backup lamps right turn left turn electric brake lead battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector wiring harness for after-market trailer brake controller (located in the instrument panel harness) and (JL1) integrated trailer brake controller
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp. 30-amp nominal rating
• REMOTE KEYLESS ENTRY with 2 transmitters and panic button.
• LAMPS SMOKED AMBER ROOF MARKER
• SKID PLATE PACKAGE FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• TIRES LT245/75R17E ALL-SEASON BLACKWALL (STD)
• TIRE SPARE LT245/75R17E ALL-SEASON BLACKWALL (Included with (QHQ) LT245/75R17 all-season blackwall tires. Available to order when (ZW9) pick-up box delete is ordered.)
• AUDIO SYSTEM AM/FM STEREO with seek-and-scan and digital clock (STD)
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR
• ALTERNATOR 160 AMPS
• Four Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Automatic Headlights
• Intermittent Wipers
• AM/FM Stereo
• Split Bench Seat
• Vinyl Seats
• Adjustable Steering Wheel
• Cruise Control
• A/C
• Power Outlet
• Passenger Vanity Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3457
• Curb Weight - Rear (lbs): 2505
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 20500
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1485
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14400
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3600
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2475
• Maximum Trailering Capacity (lbs): 17500
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZHQ
• Front Tire Size: LT245/75R17
• Rear Tire Size: LT245/75R17
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 44.9
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 133.70
• Length, Overall w/o rear bumper (in): 225.00
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 77.50
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 116.50
• Cab to Axle (in): 56.00
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 38.60
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.80
• Ground Clearance, Rear (in): 9.10
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.80
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.50
• Cargo Box Width @ Wheelhousings (in): 50.60
• Cargo Box (Area) Height (in): 21.00
• Tailgate Width (in): 61.60
• Cargo Volume (ft³): 75.5
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.30
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 60.30
• Summary

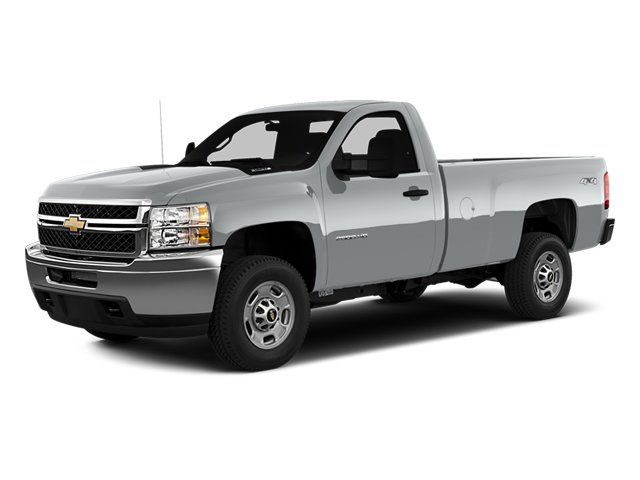

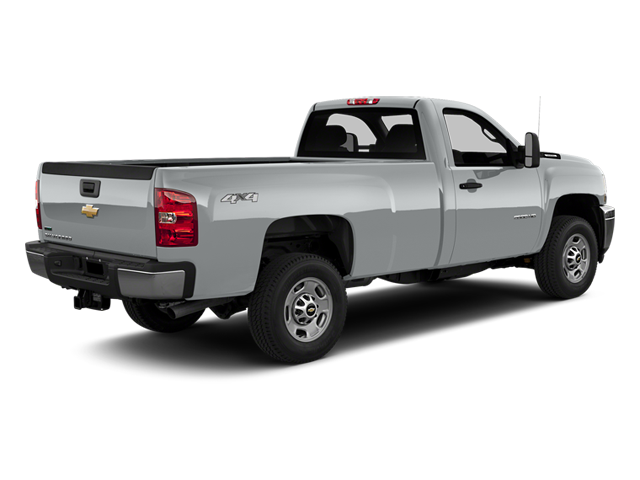

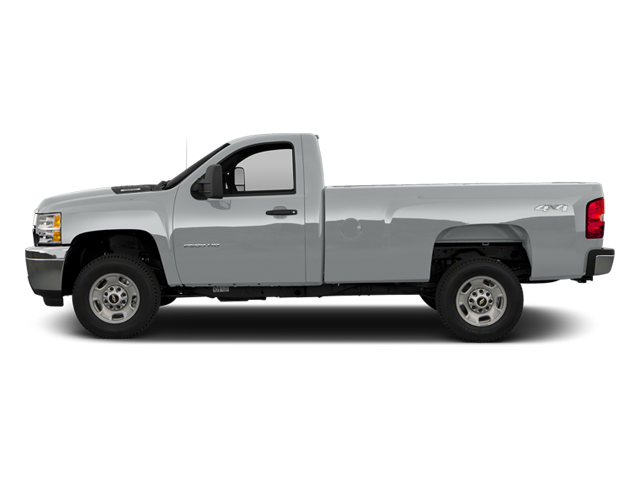

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Reg Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
